Flamethrower

Fuel Capacity (Full): 2900 g

Fuel Tank Volume: 2000 ml

Spray Distance: 8 meters

Standard Tank Operation Time: 280 seconds

Compatible Fuels: 92, 95, 98 gasoline

Rifle Weapon Station

Mounting models: Type 191 rifle, Type 95 rifle

Working time: 4-6 hours

Remote control distance: 1-3 kilometers (with edgedeployed ad-hoc network)

Ammunition capacity: 35-75 rounds (drum magazine)

Machine Gun Weapon Station

Mounting model: Type 201 machine gun

Working time: 4-6 hours

Remote control distance: 1-3 kilometers (with edgedeployed ad-hoc network)

Ammunition belt capacity: 100-300 rounds

Flying Grenade Vertical Launcher

Endurance time: 11 minutes with 1000g payload

Maximum flight speed with payload: 60 km/h80

Maximum flight speed without payload: 80 km/h

Combat radius: 3 km airborne

Grenade Launcher

Specifications: 38mm electric primer x9 rounds

Compatible ammunition types: Smoke grenades, flashbangs, tear gas

Firing modes: Remote trigger - Single shot - Burst fire

Magazine capacity: 9 rounds

Firing angle: ±45° (adjustable)

Flamethrower
Rifle Weapon Station
Machine Gun Weapon Station
Flying Grenade Vertical Launcher
Grenade Launcher

Psychological Warfare Module

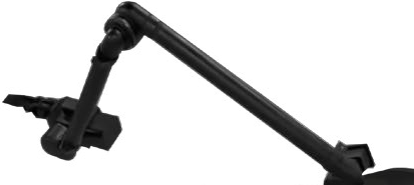

EOD Robotic Arm
(Explosive Ordnance Disposal)

Rated load: 2.5kg

Peak load: 5kg

Total weight with gripper: 12kg

Working radius: 1380mm

Control type: Position + force control 5 joints

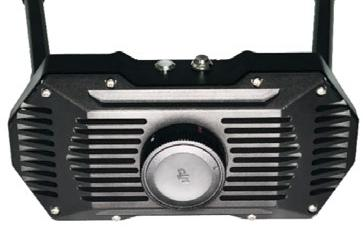

Sonic Dispersion Device

Maximum Sound Pressure Level: 133dB @1m (±2dB)

Peak Sound Pressure Level (PEAK@1m): 139dB±2dB

Voice Transmission Range: 79dB @1000m

EOD Robotic Arm
(Explosive Ordnance Disposal)
Sonic Dispersion Device

Enhanced Communication & Observation Module

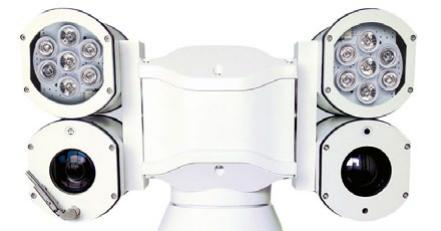

Quad-mode Strong Light PTZ
(Pan-Tilt-Zoom)

Laser fill-light: 600m LED fill-light: 200m

Digital zoom: 16x Weight: 8.5kg

Area masking, anti-flicker, defogging, corridor mode, backlight compensation, strong light suppression, exposure compensation, bad pixel compensation

Edge-deployed Ad-hoc Network Module

Operating frequency: 1420-1520MHz

Transmit power: 2*2W Weight: 580g

Peak data rate: 90Mbps@20MHz

Networking capability: Same-frequency networking >32 nodes

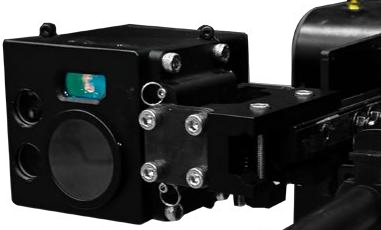

Weapon Station Thermal Imaging AI Optoelectronic System

Thermal imaging range: 2000m (6 .5*3m target)

Visible light range: 3500m (6 .5*3m target)

Laser rangefinder range: 10-2000m

Autonomous recognition: Human and vehicle Weight:490g

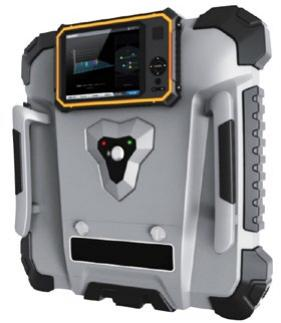

Through-wall Radar

Detection distance: Static living organisms < 15m Moving living organisms < 20m

Working duration: 4h Weight: 7kg

Detection penetration: Can penetrate 37cm brickconcrete walls

Features: 3 D positioning imaging, displays moving and stationary targets

Quad-mode Strong Light PTZ
(Pan-Tilt-Zoom)
Edge-deployed Ad-hoc Network Module
Weapon Station Thermal Imaging AI Optoelectronic System
Through-wall Radar
