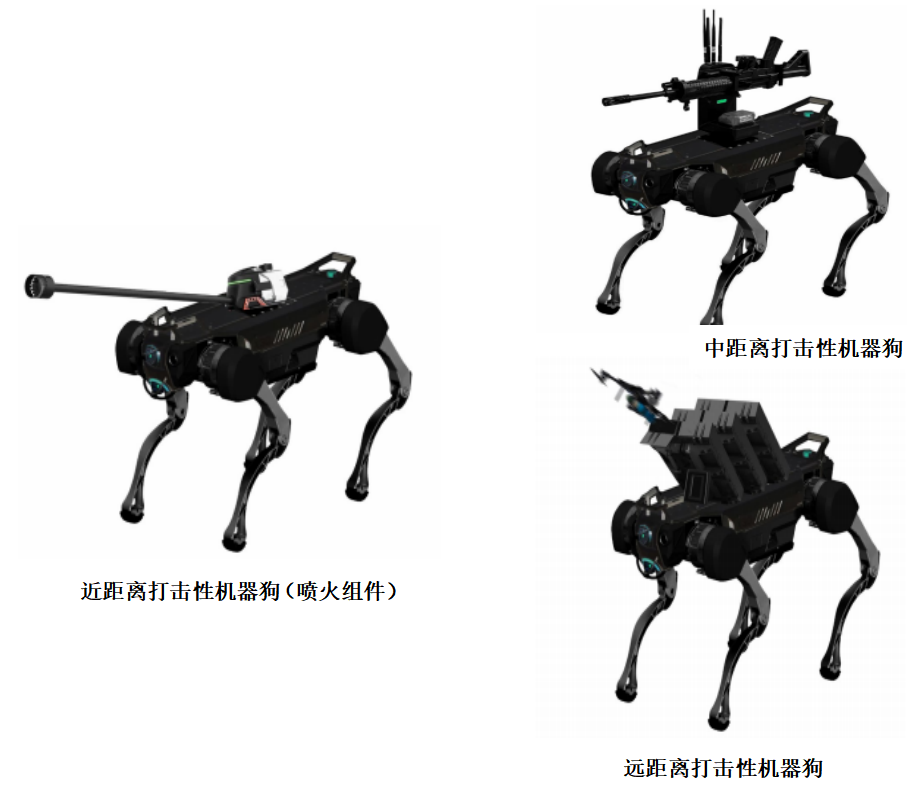

Large Combat Robotic Dog (MCRD)

I. Robotic Dog Platform

Maximum speed: 3 ~4.95m/s (extreme test data)

Maximum walking speed: 1.7 m/s

Maximum climbable slope: ±30°

Maximum step height: 20cm

Maximum step angle: ±35°

Unloaded endurance time: 4h

Loaded endurance time: 2.5h

Weight: 50kg

Effective payload: 20kg

Maximum load: 85kg (extreme test data)

(II) Sensor Parameters Solid-state Li DAR: 4 units

Wide-angle camera: 1 unit

Optional modules: Dual-optical PTZ; 4G/5G; Bei Dou/GPS/RTK

(III) Environmental Parameters Protection rating: IP67

Operating temperature range: -20℃~50℃

II. Communication Module

Model: Ad-hoc network module

Dimensions: 91mm×56.5 mm×22.5 mm

Weight: 200g

Transmission range: 20km

Frequency range: 580-1438MHz (customizable)

Bandwidth: 2/5/10/20MHz

Networking capability: 32-node network

Power consumption: 18W

Operating temperature: -35°C ~65°C

Large Combat Robotic Dog (MCRD)

一、机器狗平台

I. Robotic Dog Platform
Maximum speed: 3 ~4.95m/s (extreme test data)
Maximum walking speed: 1.7 m/s
Maximum climbable slope: ±30°
Maximum step height: 20cm
Maximum step angle: ±35°
Unloaded endurance time: 4h
Loaded endurance time: 2.5h
Weight: 50kg
Effective payload: 20kg
Maximum load: 85kg (extreme test data)

(II) Sensor Parameters Solid-state Li DAR: 4 units
Wide-angle camera: 1 unit
Optional modules: Dual-optical PTZ; 4G/5G; Bei Dou/GPS/RTK

(III) Environmental Parameters Protection rating: IP67
Operating temperature range: -20℃~50℃

II. Communication Module
Model: Ad-hoc network module
Dimensions: 91mm×56.5 mm×22.5 mm
Weight: 200g
Transmission range: 20km
Frequency range: 580-1438MHz (customizable)
Bandwidth: 2/5/10/20MHz
Networking capability: 32-node network
Power consumption: 18W
Operating temperature: -35°C ~65°C
二、通讯模块

I. Robotic Dog Platform
Maximum speed: 3 ~4.95m/s (extreme test data)
Maximum walking speed: 1.7 m/s
Maximum climbable slope: ±30°
Maximum step height: 20cm
Maximum step angle: ±35°
Unloaded endurance time: 4h
Loaded endurance time: 2.5h
Weight: 50kg
Effective payload: 20kg
Maximum load: 85kg (extreme test data)

(II) Sensor Parameters Solid-state Li DAR: 4 units
Wide-angle camera: 1 unit
Optional modules: Dual-optical PTZ; 4G/5G; Bei Dou/GPS/RTK

(III) Environmental Parameters Protection rating: IP67
Operating temperature range: -20℃~50℃

II. Communication Module
Model: Ad-hoc network module
Dimensions: 91mm×56.5 mm×22.5 mm
Weight: 200g
Transmission range: 20km
Frequency range: 580-1438MHz (customizable)
Bandwidth: 2/5/10/20MHz
Networking capability: 32-node network
Power consumption: 18W
Operating temperature: -35°C ~65°C

Strike Module

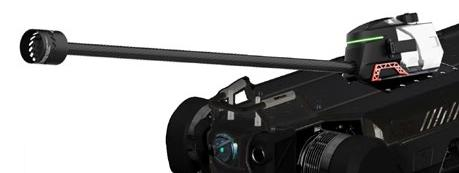

Flamethrower

Fuel Capacity (Full): 2900 g

Fuel Tank Volume: 2000 ml

Spray Distance: 8 meters

Standard Tank Operation Time: 280 seconds

Compatible Fuels: 92, 95, 98 gasoline

Rifle Weapon Station

Mounting models: Type 191 rifle, Type 95 rifle

Working time: 4-6 hours

Remote control distance: 1-3 kilometers (with edgedeployed ad-hoc network)

Ammunition capacity: 35-75 rounds (drum magazine)

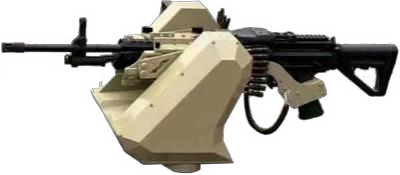

Machine Gun Weapon Station

Mounting model: Type 201 machine gun

Working time: 4-6 hours

Remote control distance: 1-3 kilometers (with edgedeployed ad-hoc network)

Ammunition belt capacity: 100-300 rounds

Flying Grenade Vertical Launcher

Endurance time: 11 minutes with 1000g payload

Maximum flight speed with payload: 60 km/h80

Maximum flight speed without payload: 80 km/h

Combat radius: 3 km airborne

Grenade Launcher

Specifications: 38mm electric primer x9 rounds

Compatible ammunition types: Smoke grenades, flashbangs, tear gas

Firing modes: Remote trigger - Single shot - Burst fire

Magazine capacity: 9 rounds

Firing angle: ±45° (adjustable)

Flamethrower
Rifle Weapon Station
Machine Gun Weapon Station
Flying Grenade Vertical Launcher
Grenade Launcher
