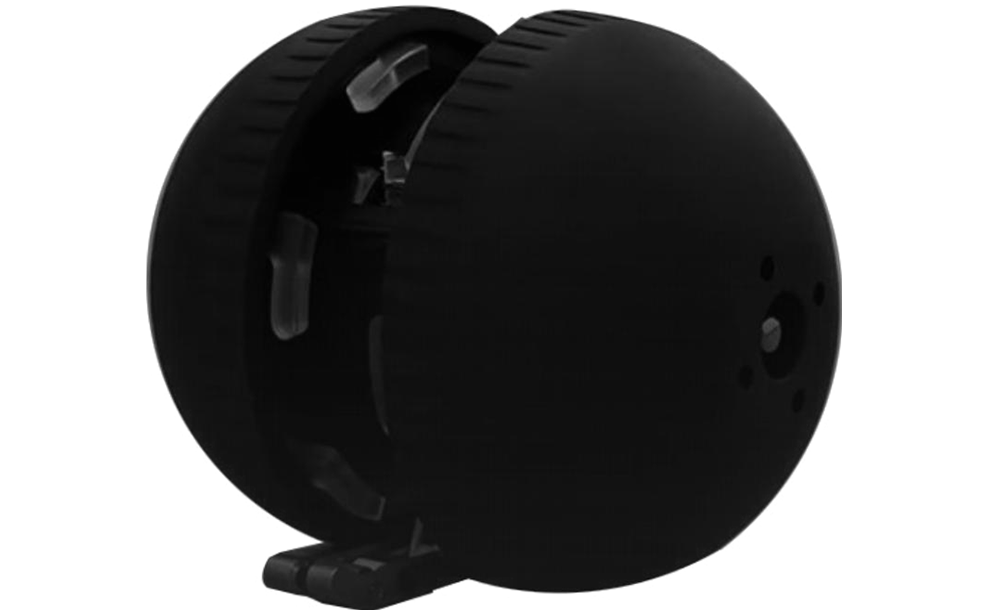

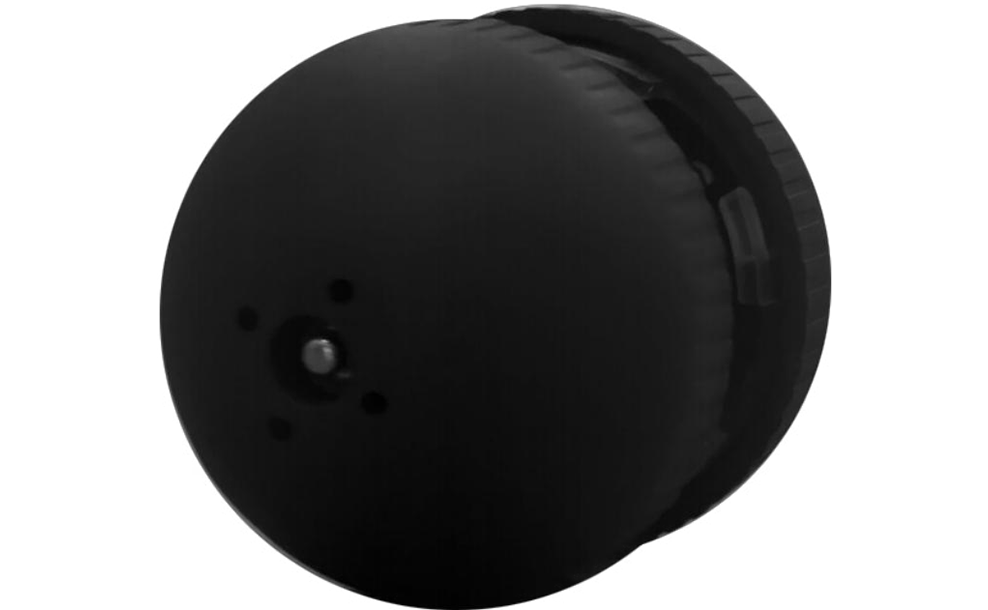

Recon Ball

​

  • Model:
    Self-propelled Recon Ball
  • Dimensions:
    120mm
  • Detection Range:
    100m (daylight)/ 18m (infrared)
  • Movement Speed:
    1.2 m/s
  • Operating Noise:
    56dB @1m
  • Remote Control Range:
    110m (indoor)/ 800m (outdoor, unobstructed)
  • Operating Time:
    8hrs (stationary)/ 4-5hrs (mobile)
  • Weight:
    650g
Remote Control Terminal Specifications

​

  • Dimensions:
    270 ×185 ×46mm
  • Screen Resolution:
    1920 ×1080
  • Storage Capacity:
    64GB
  • Weight: 1kg
    1kg
  • Display Modes:
    Split-screen/Full-screen
  • Operating Time:
    4 hours
  • Screen Brightness:
    800 nit

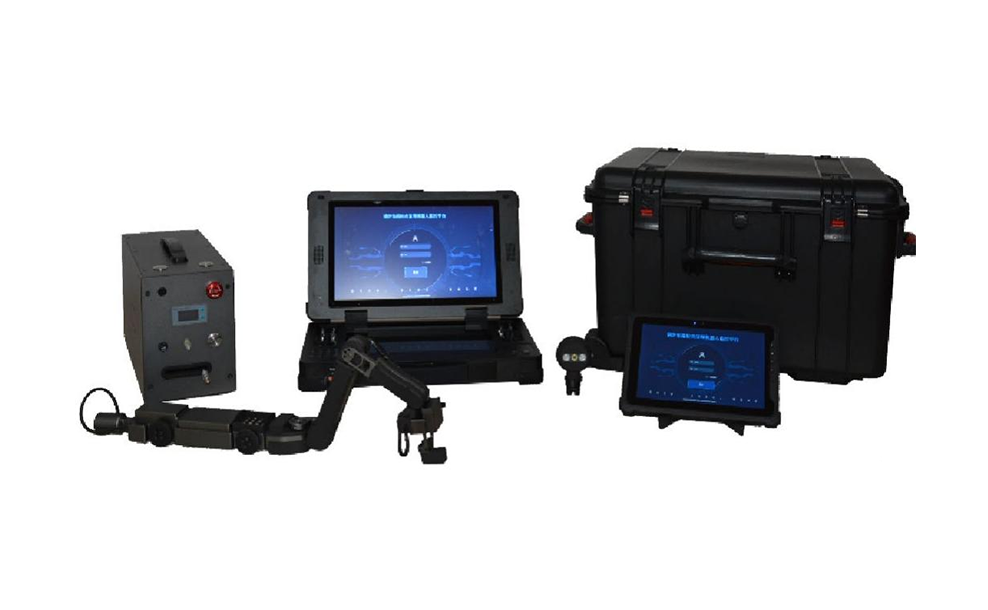

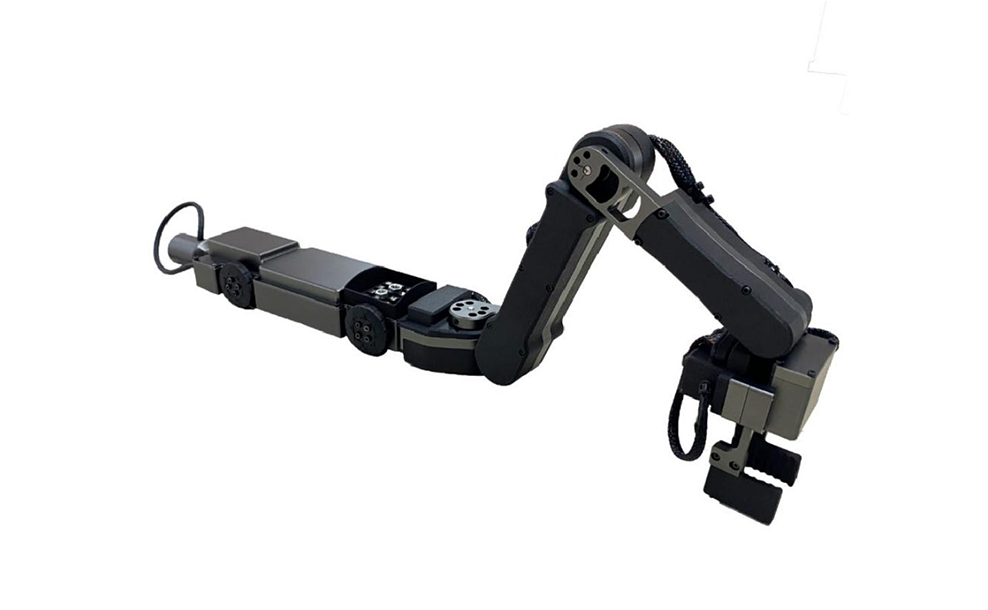

Snake-shaped Pipeline Reconnaissance Robot

​

  • Dimensions:
    Approx. 750mm×75mm×54mm;
  • Manipulator specifications:
    4-joint, maximum reach approx. 400mm;
  • Mechanical gripper:
    Maximum opening approx. 45mm, interchangeable grippers; Object grasping capability;
  • Camera support:
    Standard/panoramic camera, auto-focus, LED illumination, photo/real-time video;
  • Operating time:
    8 hours;
  • Custom rubber material with embedded magnets, 4-wheel differential drive.

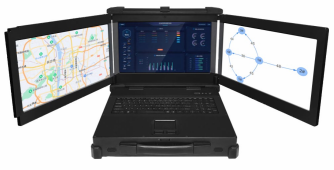

Remote Control Terminal Parameters

​

  • Main screen:
    15.6-inch, resolution 1920*1080
  • Secondary screen:
    12.1-inch, resolution 1280*800
  • Storage capacity:
    16GB RAM, 512GB SSD
  • Joysticks:
    4 Hall-effect industrial joysticks
  • Operating time:
    4 hours
  • Protection rating:
    IP65
