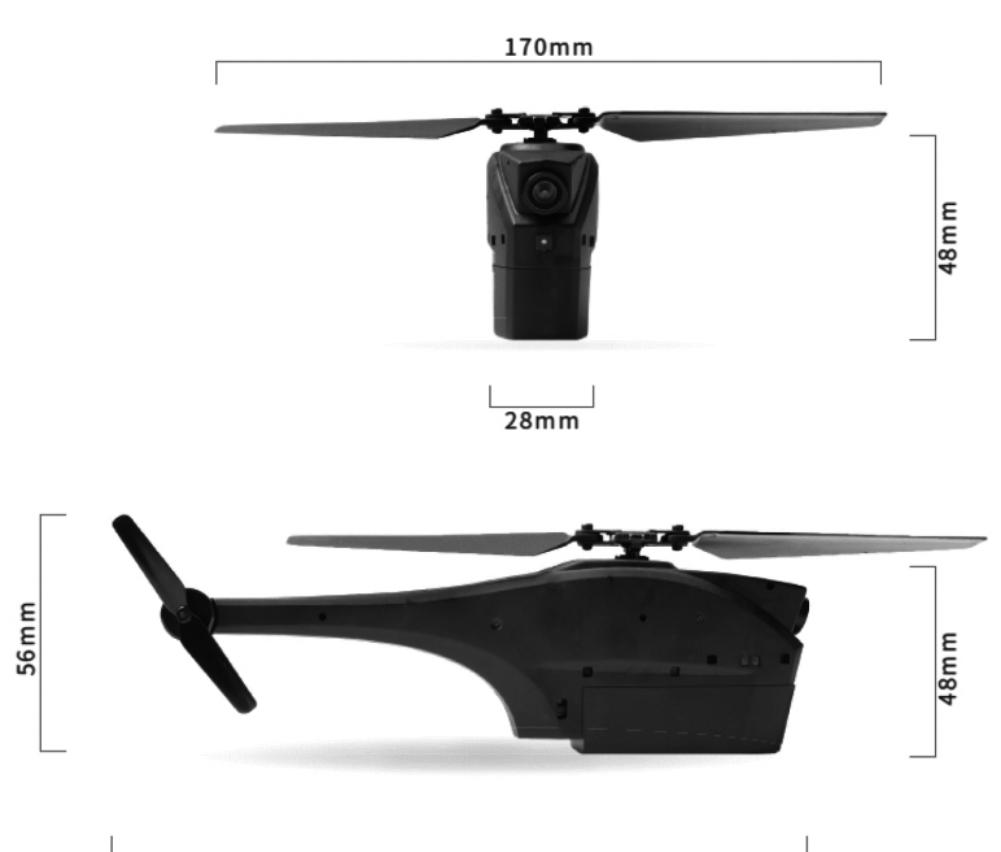

Rotorcraft Reconnaissance UAV Series

​

  • Fuselage length:
    157mm
  • Weight:
    56g
  • Remote control range:
    2.5km
  • Flight speed:
    5 m/s
  • Endurance time: 20min
    256x192
  • Camera resolution:
    256×192
  • Video transmission resolution:
    640×380p
  • Wind resistance level:
    3
  • Noise level:
    50dB (at 3 m distance)
  • Remote signal strength:
    Penetrates 3 brick walls
  • Transmission link:
    2.4G triple-mode transmission link
S200 Dual-Optics UAV

​

  • Dimensions (with blades):
    57×558×108mm (unfolded)
  • Weight:
    1750g
  • Maximum takeoff weight:
    2300g
  • Rotor span:
    486mm
  • Maximum horizontal speed:
    21m/s
  • Maximum takeoff altitude:
    6000m
  • Max wind resistance:
    12m/s
  • Maximum flight time:
    45 minutes (long endurance battery version)
  • Maximum communication range:
    15km (FCC) 8km (SRRC/MIC)
  • Wide-angle telephoto lens:
    50MP 10x optical zoom

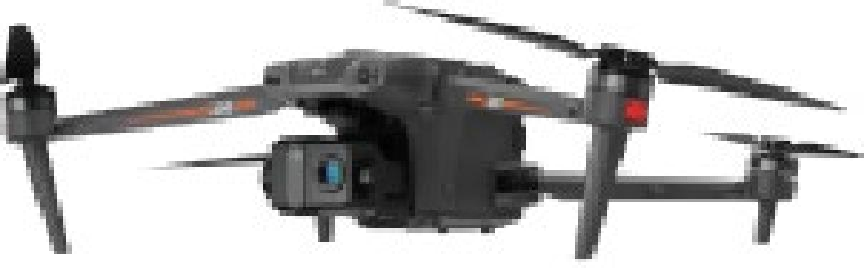

S220 Infrared UAV (Counterpart to M 3T)

​

  • Dimensions (with blades):
    457*558*108mm (unfolded)
  • Weight:
    1750g
  • Maximum horizontal speed:
    21m
  • Maximum takeoff weight:
    2300g
  • Rotor span:
    486mm
  • Maximum takeoff altitude:
    6000m
  • Max wind resistance:
    12m/s
  • Maximum flight time:
    45 minutes (long-endurance battery version)
  • Maximum communication range:
    15km (FCC) 8km (SRRC/MIC)
  • Wide-angle telephoto lens:
    50MP 10x optical zoom
  • Infrared camera:
    640*512 (Pro model: 1280*1024)

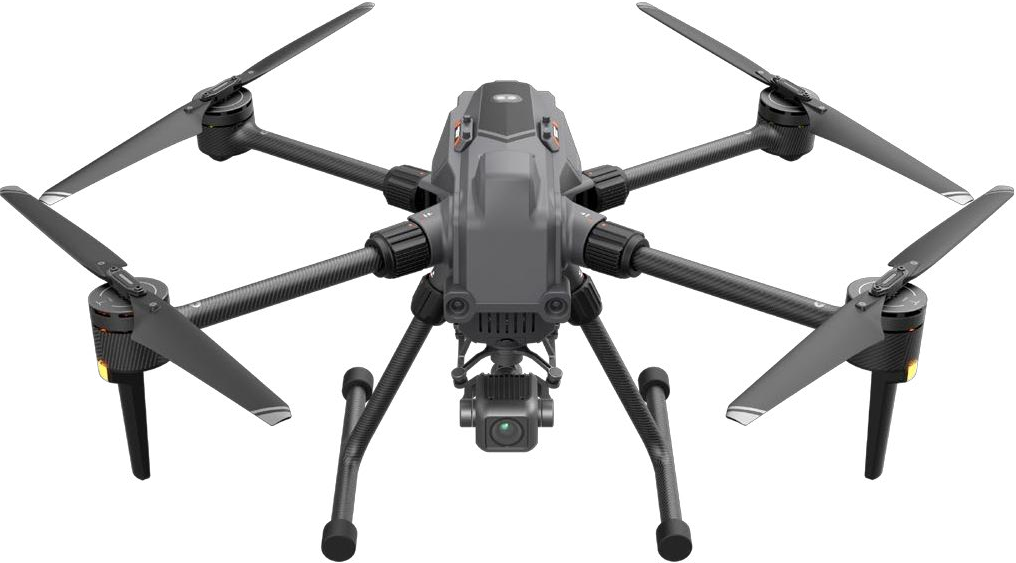

S400 UAV (Counterpart to M 300)

​

  • Dimensions:
    549×592×424mm (without blades)
  • Maximum takeoff weight: 7kg
    7kg
  • Rotor span:
    725mm
  • Payload capacity:
    3kg (at 15m/s speed)
  • Maximum horizontal speed:
    23m/s
  • IP waterproof rating:
    IP45
  • Maximum flight time:
    63 minutes
  • Communication range:
    15km
  • Maximum takeoff altitude:
    5000m
  • Max wind resistance:
    Level 7
  • Zoom camera:
    1/2 " CMOS, 48MP effective pixels
  • Infrared camera:
    640×512 resolution, 8x digital zoom
