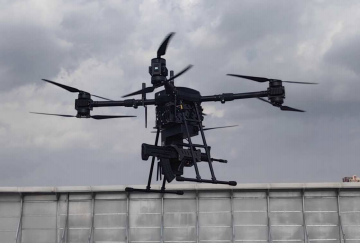

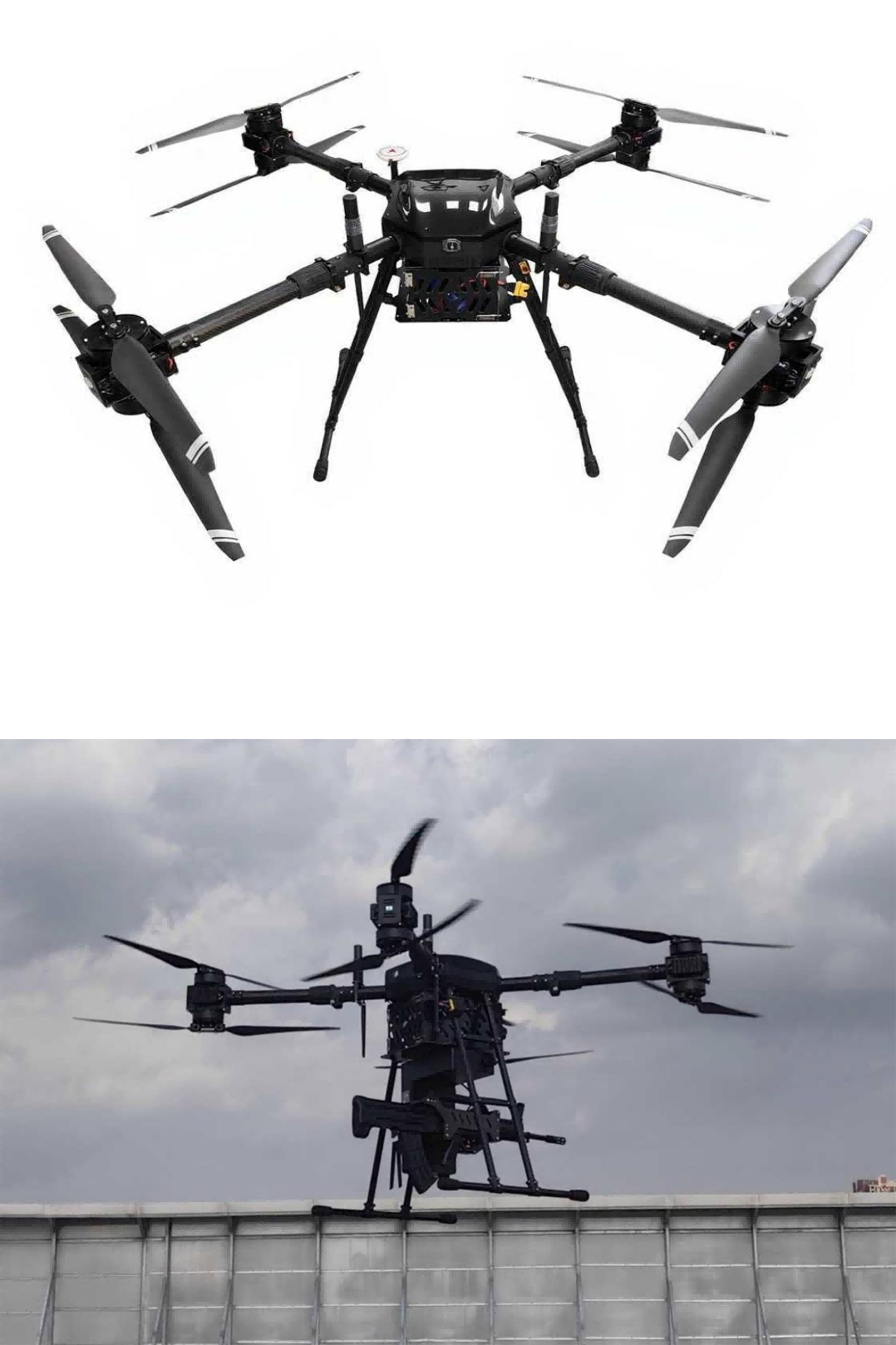

Electric Heavy-lift UAV
Power architecture: Quadcopter octo-rotor X8
redundant design(Four-arm X4 configuration) Material: Carbon fiber main frame7075 aviation aluminum alloy joints Engineering plastic protective cover Rotor span: 1500mm
Unfolded dimensions: 1100mm × 1100mm × 700mm Folded dimensions: 760mm × 760mm × 700mm
Empty weight: 16kg (excluding battery)
Payload performance
Standard payload: 25kg
Maximum payload: 30kg
Maximum takeoff weight: 55kg
Energy system
Battery capacity: 14S 41000mAh lithium battery Endurance time: No load 45 minutes / Full load 20kg15 minutes
Navigation and control
Positioning system: GPS+Bei Dou
(Optional dual differential RTK, horizontal accuracy±0.05m) Control radius: 10km
Power system (X8 integrated)
Power unit: 8 motors (four arms, dual motors per arm)
Propeller configuration: Standard 30-inch folding
propellers (single axis load 5~7kg, single axis maximum thrust 15kg)
Intelligent protection functions: Power-on self-test, voltage anomaly/overcurrent/blockage protection, real-time operational data output to flight controller Data output: Throttle value, motor speed, bus voltage/current, phase current, temperature, MOSFET temperature, etc.
Protection design: IPX6 protection rating, resistant to rain, pesticides, salt spray, sand dust; aluminum alloy structure impact-resistant, modular design for easy maintenance
Indicator lights: High-brightness LED customizable colors, supports operational status warnings
Flight Performance
Flight speed: 0-20m/s (stepless speed regulation)
Wind resistance level: Level 6
Operating altitude: ≥5000 meters
Environmental Adaptability
Protection level: IP 56 (dustproof/waterproof/impact resistant)
Operating temperature range: -5℃ ~ +55℃
Sensors and Payload
Chip: u-blox M 10 (10th generation)
Supported frequency bands: GPS L 1, GLONASS L 1, BDS B 1, Galileo E 1, SBAS L 1, QZSS L 1
Horizontal positioning accuracy: 2 D 1.5 m (open area)
Velocity accuracy: 0.05m/s
Output protocol/frequency: UBX protocol, 1 Hz-10Hz(default 1 Hz)
Dynamic Performance:
Altitude 50000m / Speed 500m/s / Acceleration 4G Camera: 1080P 25fps distortion-free, 1/2 .7 " Sensor, EFL 2.4 mm
Stabilization: Three-axis mechanical stabilization
(control accuracy 0.1°)
Angle range: Roll ±45°/ Pitch 0°~90°/ Dimensions/Weight: 51 ×43.3 ×61.7 mm Input voltage: 7.4 ~74V
Output interface: Ethernet port
Operating temperature: -10℃ ~ 50℃
Yaw ±100°/ 61g
Remote Control System
Hardware configuration: Qualcomm Snapdragon 625/ 1920 ×1080 high-brightness touch screen /10000mAh battery (endurance 6-20 hours) Communication frequency band: 2.4GHz (2 .400-2.483GHz)
Modulation technology: OFDM frequency hopping, CCK/DQPSK/DBPSK
Control channels: 12 channels
Transmission rate: 6.5-144Mbps
Transmit power: 16dBm@11Mbps
Receiver sensitivity: -94dBm@1Mbps Control range:
Open ground-to-air: 6-10km
Ground: 1.2-1.5km
Through walls: 30m (3-4 walls) Extended Functions:
Supports QGC ground station, RTSP video stream,
S.BUS protocol, serial port transparent transmission,
SDK customization
