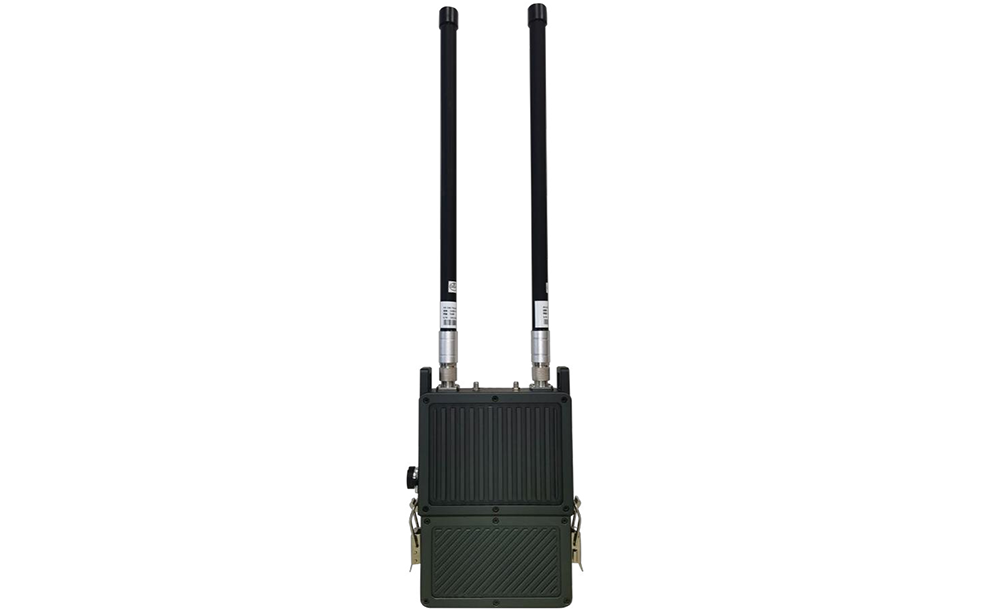

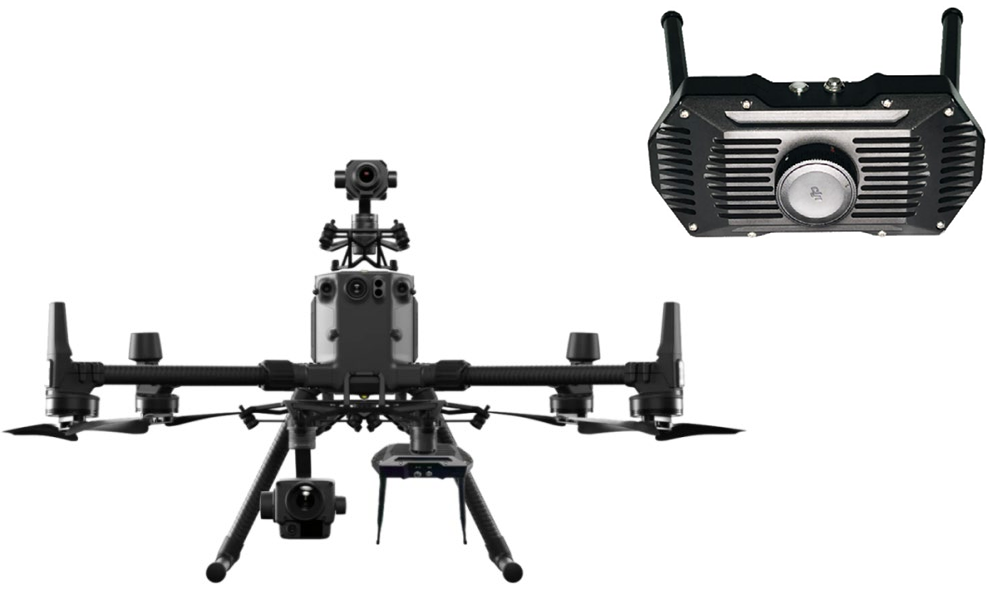

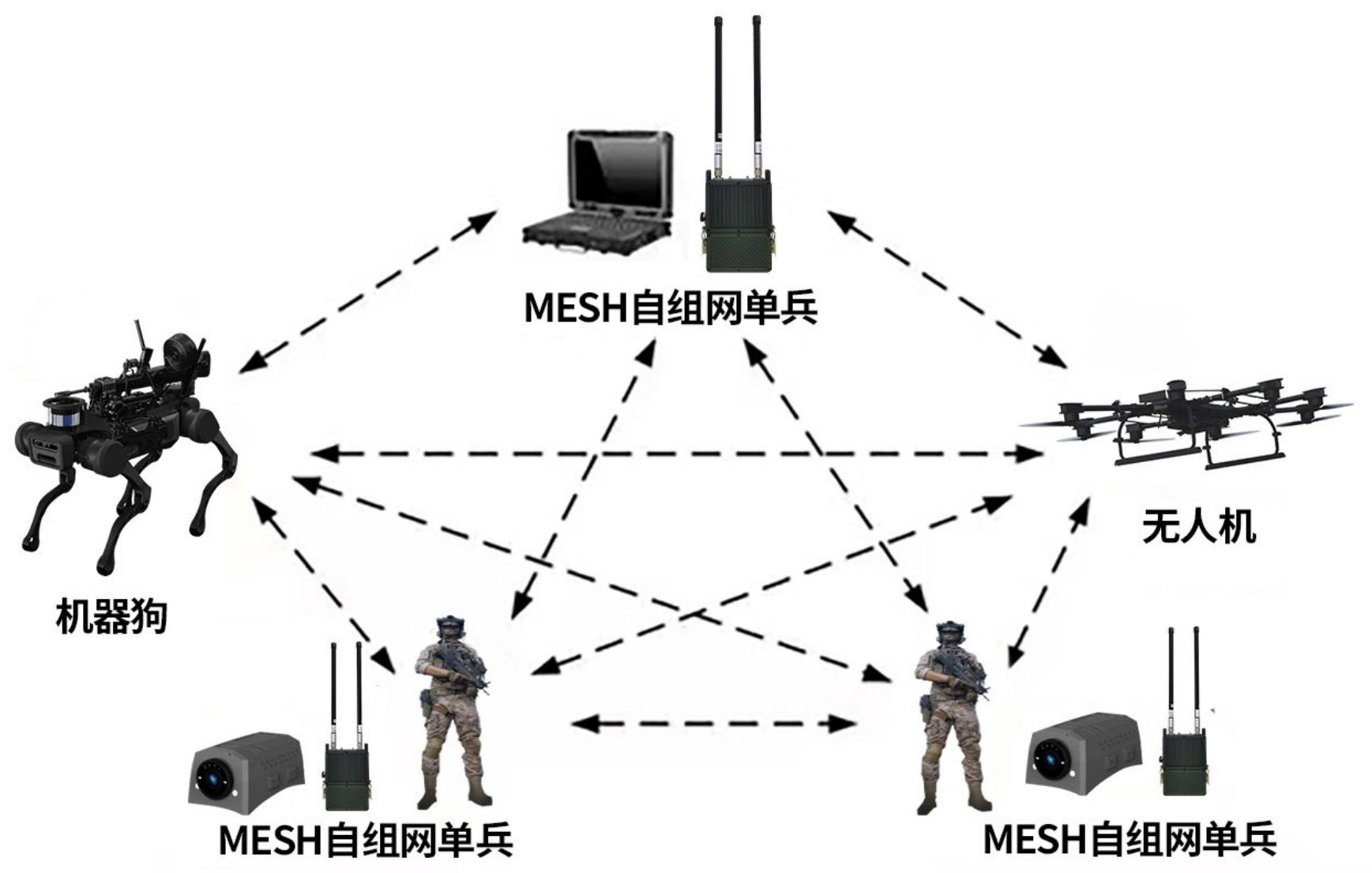

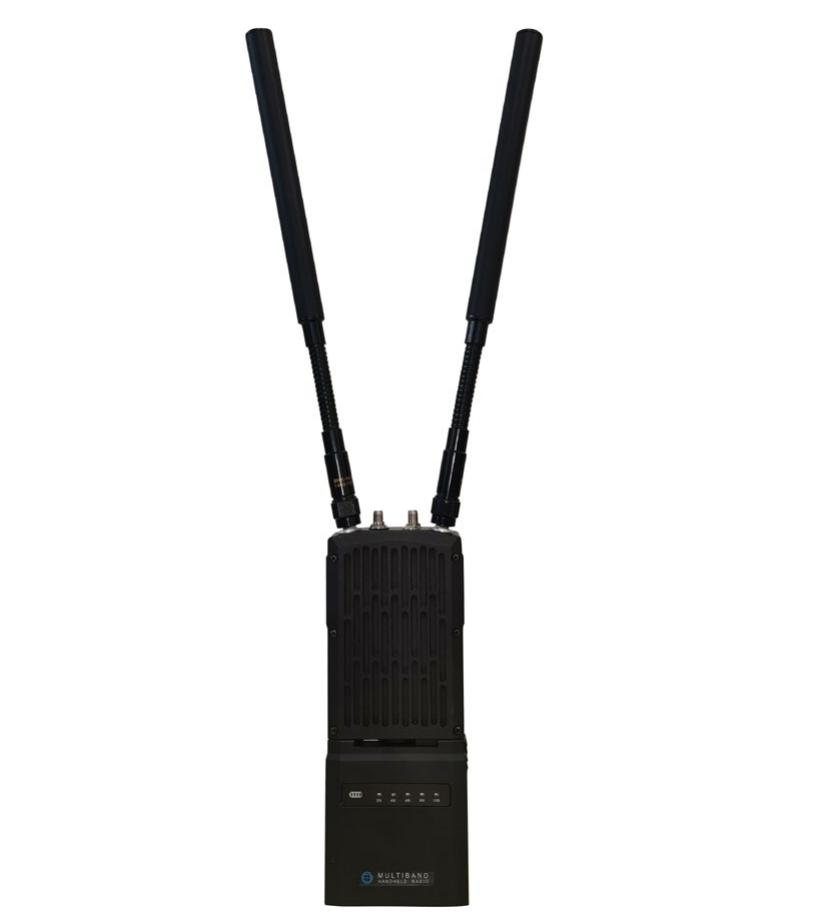

The Blood Wing MESH tactical self-organizing network system, adopts next-generation radio technology, features compact size and portable design, can be handheld or worn, or mounted on unmanned platforms as data transmission channel, has maximum 2W transmission power. This product can rapidly establish reliable wireless links in complex environments, can complete wireless transmission of video, images, voice and data. It based on Mesh wireless ad-hoc networking technology, self-organizing scale ≥64 units, relay ≥10 hops, maximum data rate 96Mbps, can flexibly adapt to rapid Mesh ad-hoc transmission in various complex environments. Can quickly deploy on-site, rapidly establish private broadband network environment, simultaneously can establish bidirectional audio-video communication between front-line and rear command vehicles. Can seamlessly integrate with existing IP wired networks, flexibly expand IP wired networks. Has significant characteristics: long-range, antiblocking, anti-interference, high reliability.

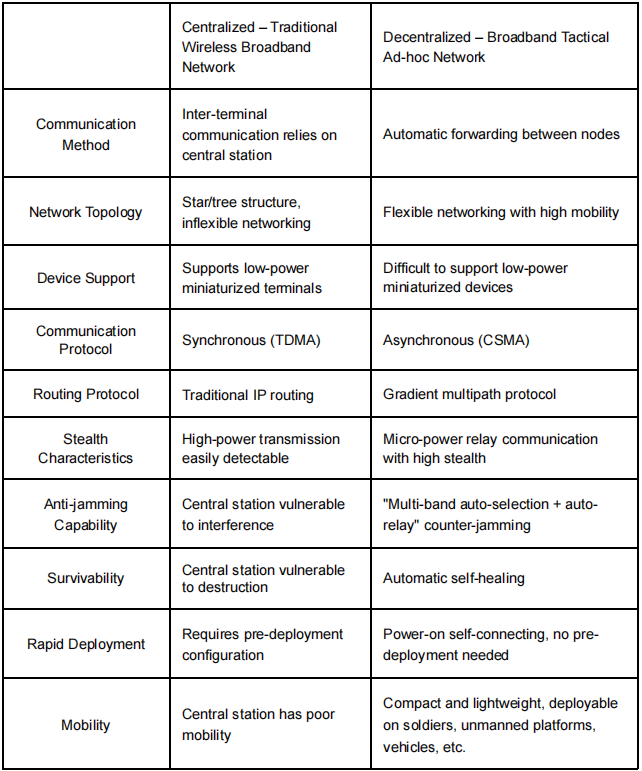

Tactical Mobile Ad-hoc Network System (MESH) Capabilities and Specifications
